Galvanized Villa Fence Roller Former Machine

  • 1 - 1 Sets
    $19,500.00
  • >=2 Sets
    $19,000.00
Power(W):
8kw
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
3 years
Type:
Tile Forming Machine
Production Capacity:
8kw
Certification:
CE
Condition:
New
After-sales Service Provided:
Online support, Field maintenance and repair service
Brand Name:
ZY
Voltage:
380v, 50hz
Weight:
8000kgs
Tile Type:
Glazed Steel
Processing material:
GI, PPGI
Control System::
PLC Control
Roller Material:
Cr12
Line speed::
20-25m/min
Applied slab thickness::
0.25-0.8mm
Rolling rows::
16rows
Rolling diameter::
40mm
Dimensions::
8.5m*1.5m*1.6m
Weight::
5t
Supply Ability
Supply Ability:
700 Set/Sets per Year
Packaging & Delivery
Packaging Details
by container
by bulk
Port
Tianjin port, China
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 35 To be negotiated

Welcome to Cangzhou Zhiye Cold Forming Machinery Co.,Ltd

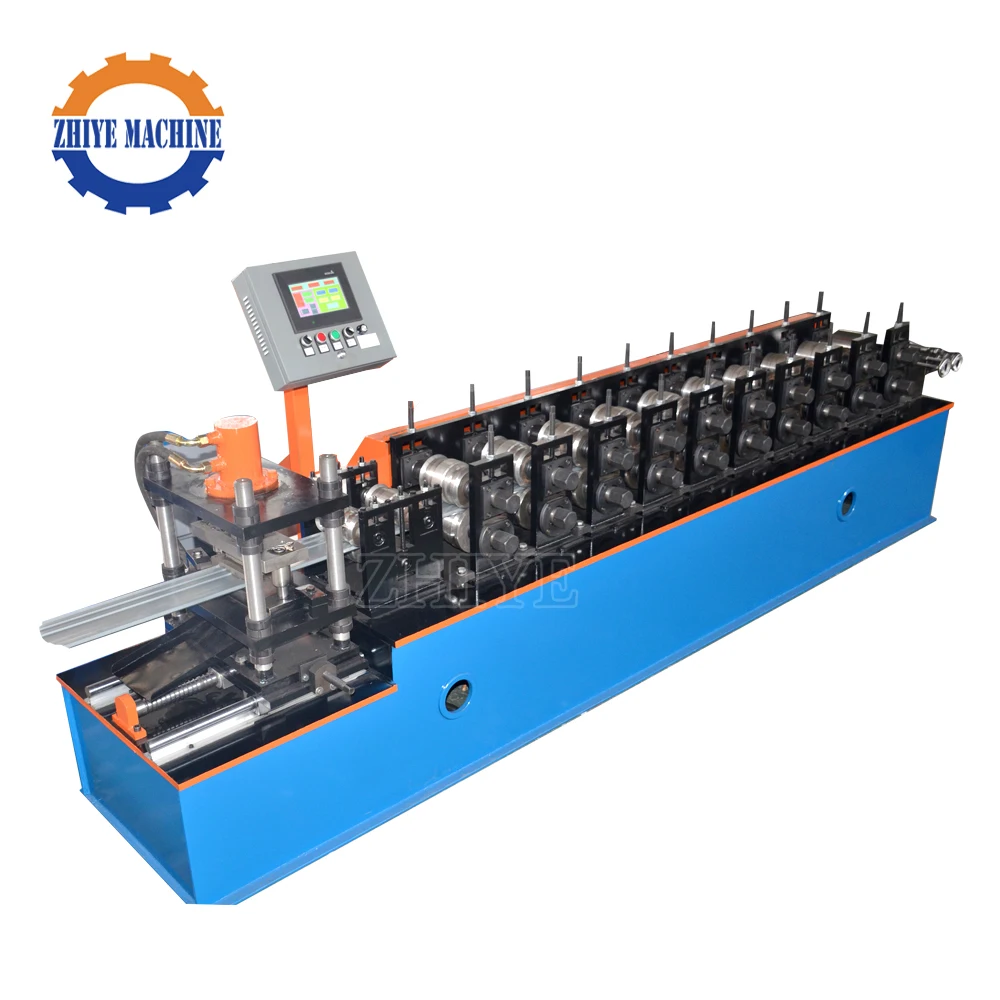

Galvanized Villa Fence Roller Former Machine

Product Description



*Products made by Aluminium Metal Steel Fencing Roll Forming Machine Hot Sale is easy to install, used together with different colors can make it appear dye-in-the-wood individual character. Width of 75, 100, 150, 200, and 300 C-shaped keel can be assembled arbitrarily, and they are connected tightly. They can be fixed on the device which is specially used for keels, they can tear down individually.


*Products made by Aluminium Metal Steel Fencing Roll Forming Machine Hot Sale is suitable to use as building decorations, especially suitable to use in bedroom, kitchen, washroom, corridor and so on.


*Material for this Aluminium Metal Steel Fencing Roll Forming Machine Hot Sale is galvanized steel plate, snowflake plate and colored steel plate



*Technical parameter of product line:

1.Processing Thickness:0.25-0.8mm
2. Roller Driven:Gear Transmission
3. Processing materialGI
4. Line speed:20-25m/min
5. Rolling rows:16rows
6. Shaft diameter:40mm
7. Dimensions:8.5m*1.5m*1.6m
8. Weight:5t
9. Power:4kw+4kw
10. Testing MaterialQ195
11. Voltage380V 50HZ or as customer's request
12. Control StylePLC



*Equipment parts
1. Steel strip supporting frame
2. Feeding platform
3. Automatic shearing system
4. Hydraulic system
5. Steel strip unfolding system
6. Computer control system (imported computer)
7. High-precision automatic counter
8. Receiving table



*Optional equipment
Hydraulic automatic uncoiler





*Process flow:
Decoiling-loading-molding-cutting-off-discharging Working space and workman for the equipment
1. Ground-level land
2. 5T overhead travelling crane
3. Space for storing the material
4. Space for laying the machine
5. Road for vehicle moving
6. Workman: 2, operator and porter


*This Aluminium Metal Steel Fencing Roll Forming Machine Hot Sale is fully automatic and high speed producing continuously, one set of forming rolls can produce various sizes of Stud and Runner just by simply and easily changing the spacers, this enables the production of different sizes products on the same rollers.

 Galvanized Fence Roll Forming Machine Exported To United Stated

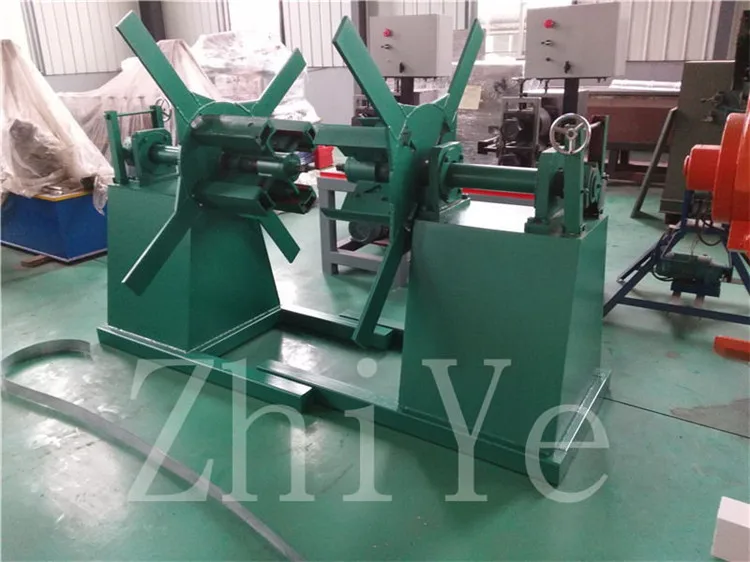

 1)Steel strip supporting frame:


2)Feeding platform:

Color Steel Fence Light Gauge Roll Former Machine

https://www.alibaba.com/product-detail/Steel-Light-Gauge-Steel-Truss-Rolling_60789407478.html?spm=a2747.manage.list.274.290771d20Z6wGe

3)Molding core:

Color Steel Fence Light Gauge Roll Former MachineUSA fence machine.jpg

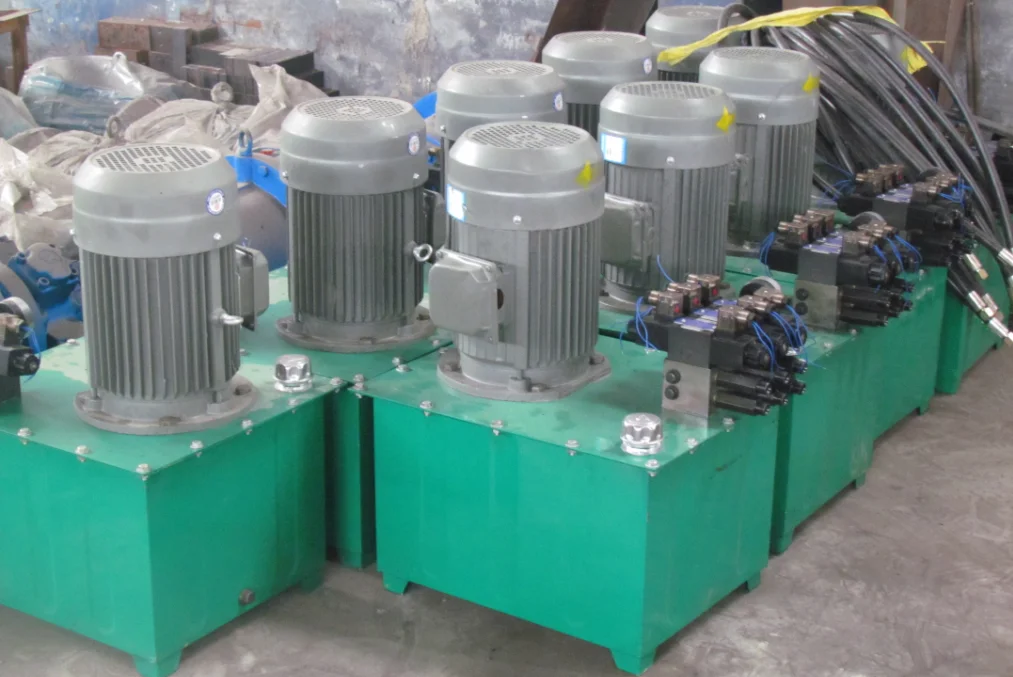

 4)Hydraulic station:

Aluminium Metal Steel Fencing Roll Forming Machine Hot Salehydraulic station.png

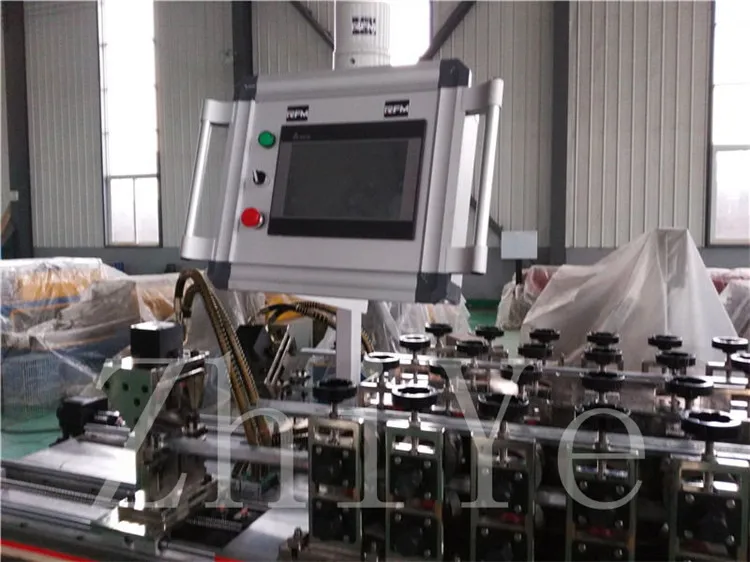

5)Computer Control Cabinet:

Color Steel Fence Light Gauge Roll Former Machine

Gypsum Dry Wall Stud Track Cold Forming Machine Manufacturer_.jpg

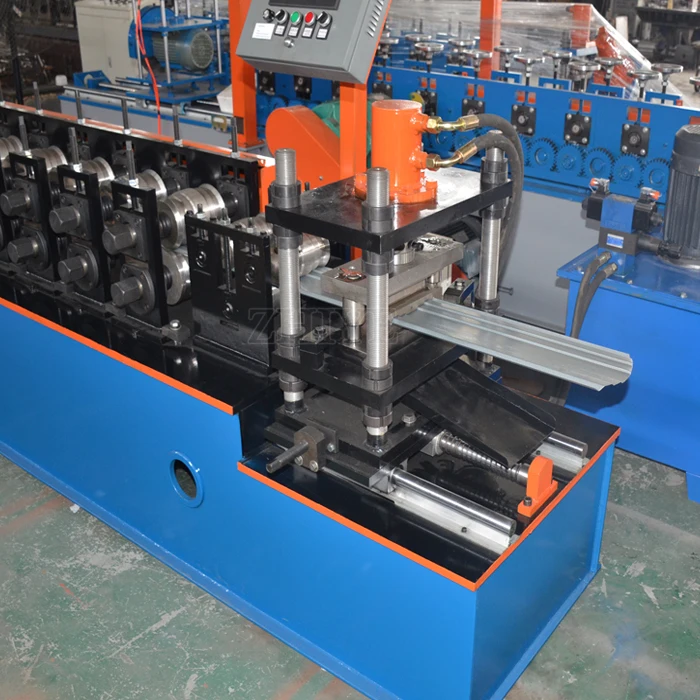

 6)Automatic shearing system:

Color Steel Fence Light Gauge Roll Former Machine

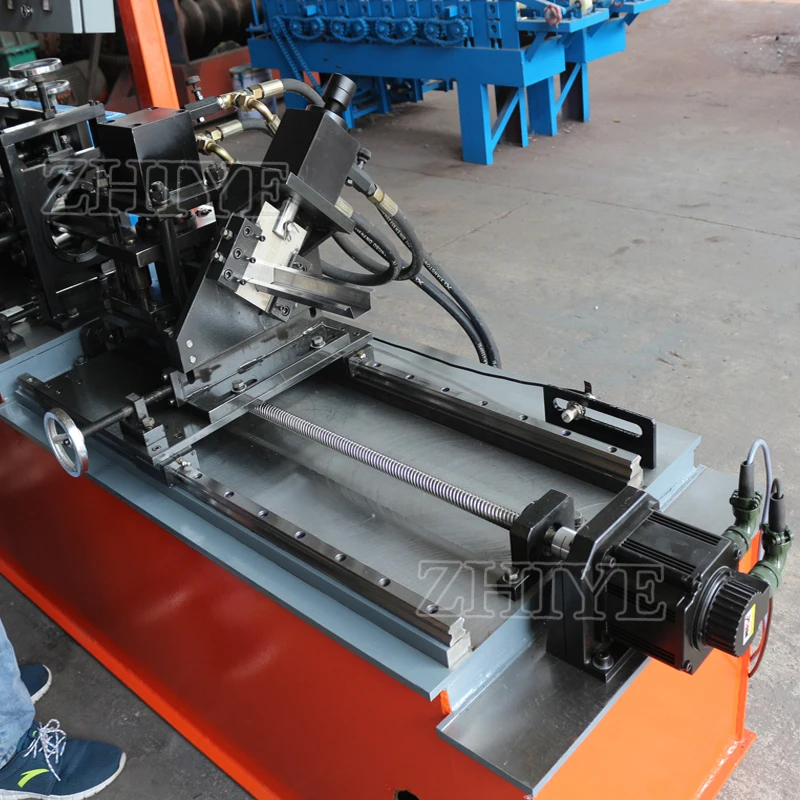

7)Servo Motor :

Color Steel Fence Light Gauge Roll Former Machine

Drywall System Metal Stud And Track Cold Forming Machine



Related Products

Our other popular machines for your choose, such as metal profile machines, c z purlin machine, roller shutter machine, downpipe machine, gutter machine, door frame machine, ridge cap machine, roofing machine, slitting line, sandwich panel production line...

roll forming machine.png

rolling forming machine.png

Packaging & Shipping

1,We have professional technicians for loading Guaranteed the goods load into container without any damage.
2,Nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
3,30 working days after received the deposite



Roll Forming Machine.jpg
